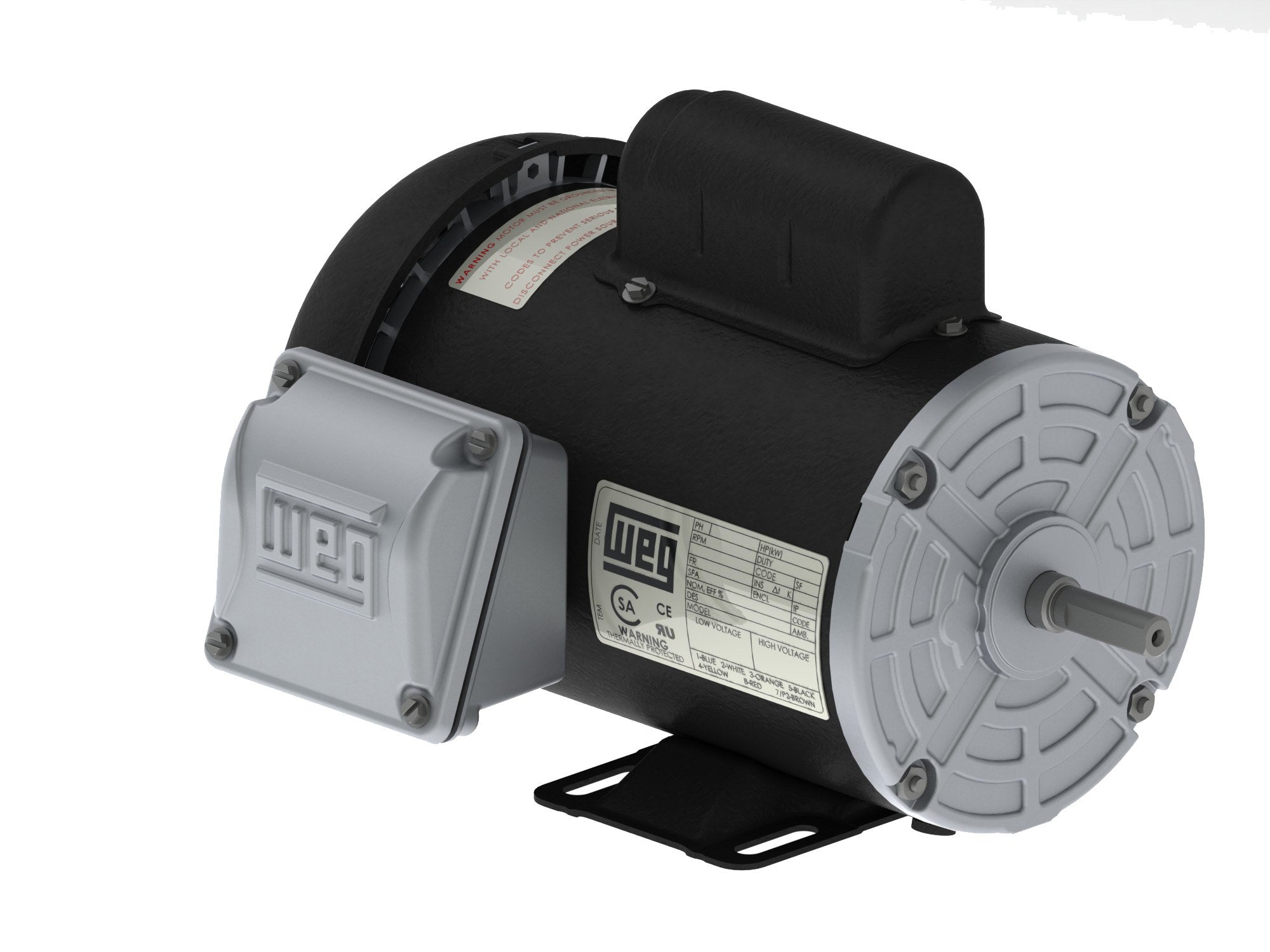

The WEG .7518ES1RFD56-S is a 0.75 HP, single phase TEFC electric motor in a 56.0 frame, rated at 1800 RPM on 115/230 volts. Genuine WEG, brand new with full manufacturer warranty.
Specifications
| Catalog Number | .7518ES1RFD56-S |
| Horsepower (HP) | 0.75 |
| RPM | 1800 |
| Frame | 56.0 |
| Phase | Single Phase |
| Enclosure | TEFC |
| Voltage | 115/230 |
| Service Factor | 1.15 |
| Full Load Amps | 5.3 |
| Efficiency (%) | 68.5 |
| Mounting | TEFC - Foot Mount - Thermally Protected |
| Product Line | Single-Phase General Purpose |
| Shipping Weight (lbs) | 34.0 |
