0.5HP WEG 3600RPM W56 TEFC 1PH MOTOR .5036ES1BW56-S
$252.77
Sale price
$252.77
Regular price
$284.00
Skip to product information
0.5HP WEG 3600RPM W56 TEFC 1PH MOTOR .5036ES1BW56-S
$252.77
Sale price
$252.77
Regular price
$284.00

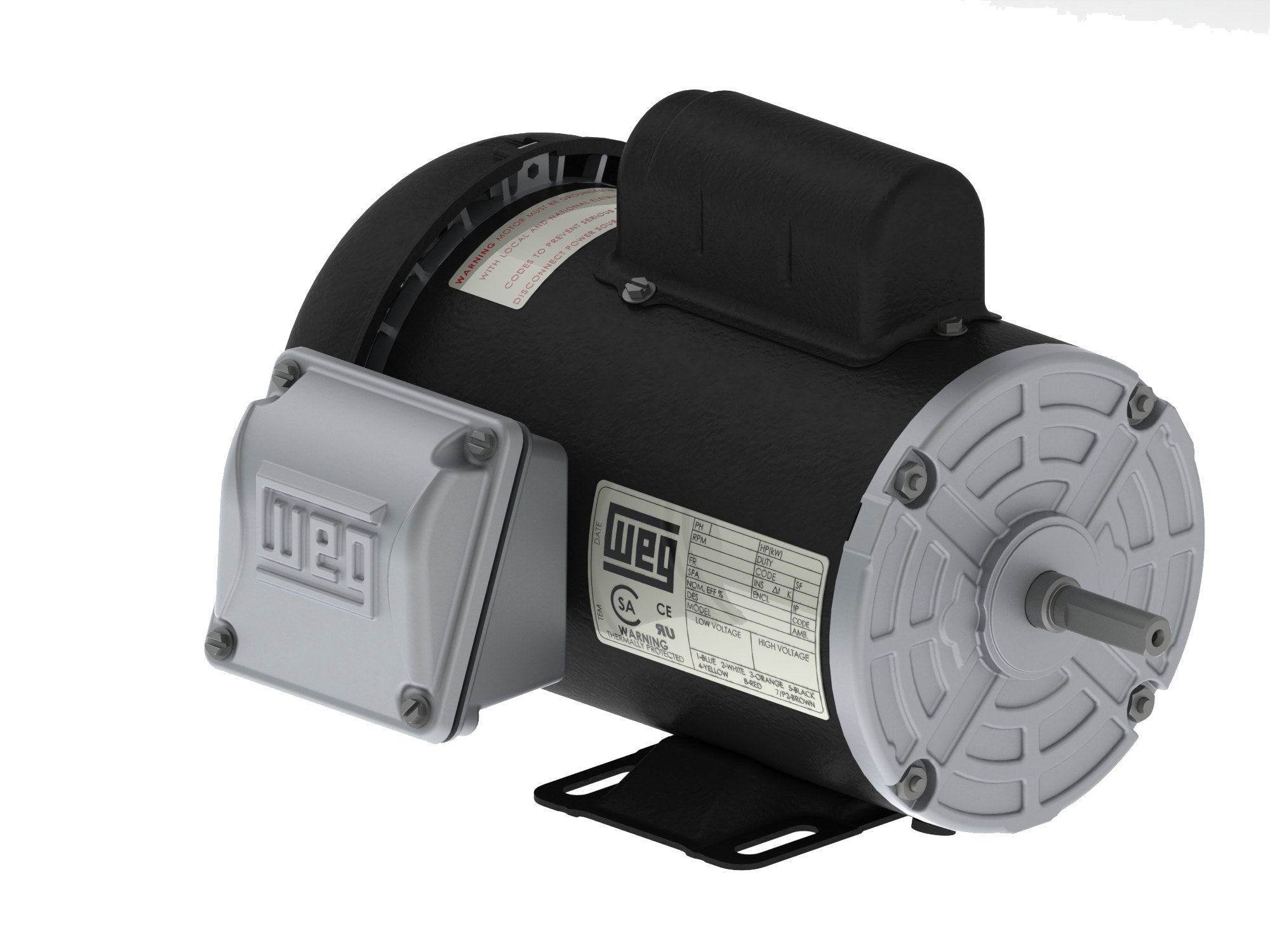

The WEG .5036ES1BW56-S is a 0.5 HP, single phase TEFC electric motor in a W56 frame, rated at 3600 RPM on 115/208-230 volts. Genuine WEG, brand new with full manufacturer warranty.
Specifications
| Catalog Number | .5036ES1BW56-S |
| Horsepower (HP) | 0.5 |
| RPM | 3600 |
| Frame | W56 |
| Phase | Single Phase |
| Enclosure | TEFC |
| Voltage | 115/208-230 |
| Service Factor | 1.15 |
| Full Load Amps | 3.5 |
| Efficiency (%) | 60.0 |
| Mounting | TEFC - Foot Mount |
| Product Line | Single-Phase General Purpose Motors |
| Shipping Weight (lbs) | 24.0 |
