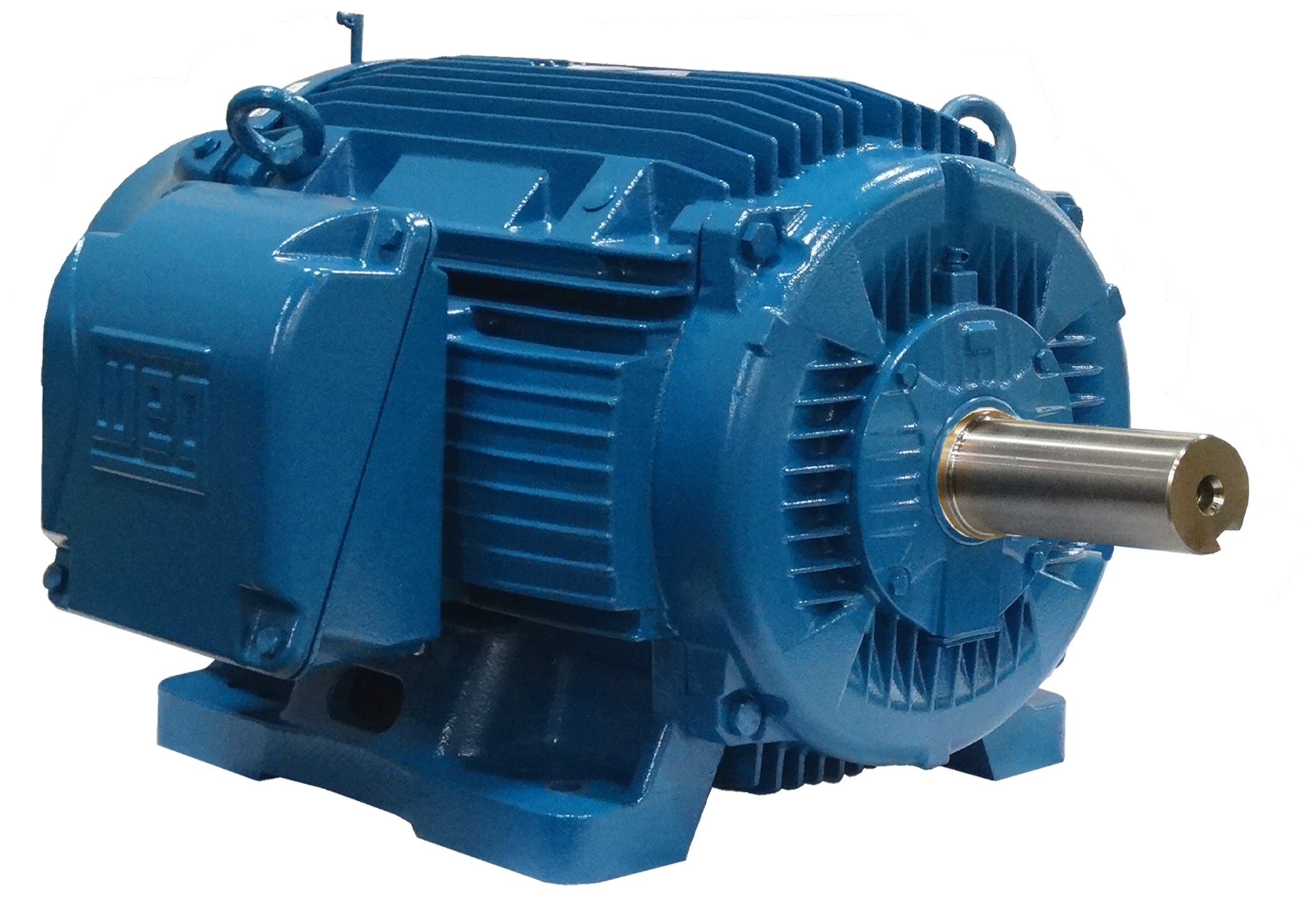

1.5HP WEG 3600RPM 143/5T TEFC 3PH MOTOR 00156ET3H143T-W22
$483.28
Sale price
$483.28
Regular price
$543.00
The WEG 00156ET3H143T-W22 is a 1.5 HP, three phase TEFC electric motor in a 143/5T frame, rated at 3600 RPM on 575.0 volts. Genuine WEG, brand new with full manufacturer warranty.
Specifications
| Catalog Number | 00156ET3H143T-W22 |
| Horsepower (HP) | 1.5 |
| RPM | 3600 |
| Frame | 143/5T |
| Phase | Three Phase |
| Enclosure | TEFC |
| Voltage | 575.0 |
| Service Factor | 1.25 |
| Full Load Amps | 1.57 |
| Efficiency (%) | 84.0 |
| Mounting | TEFC - Foot Mount |
| Product Line | Three Phase General Purpose Motors |
| Shipping Weight (lbs) | 49.0 |
