1HP WEG 1800RPM 143/5T TEFC 3PH MOTOR 00118ET3H143T-W22
$469.04
Sale price
$469.04
Regular price
$527.00

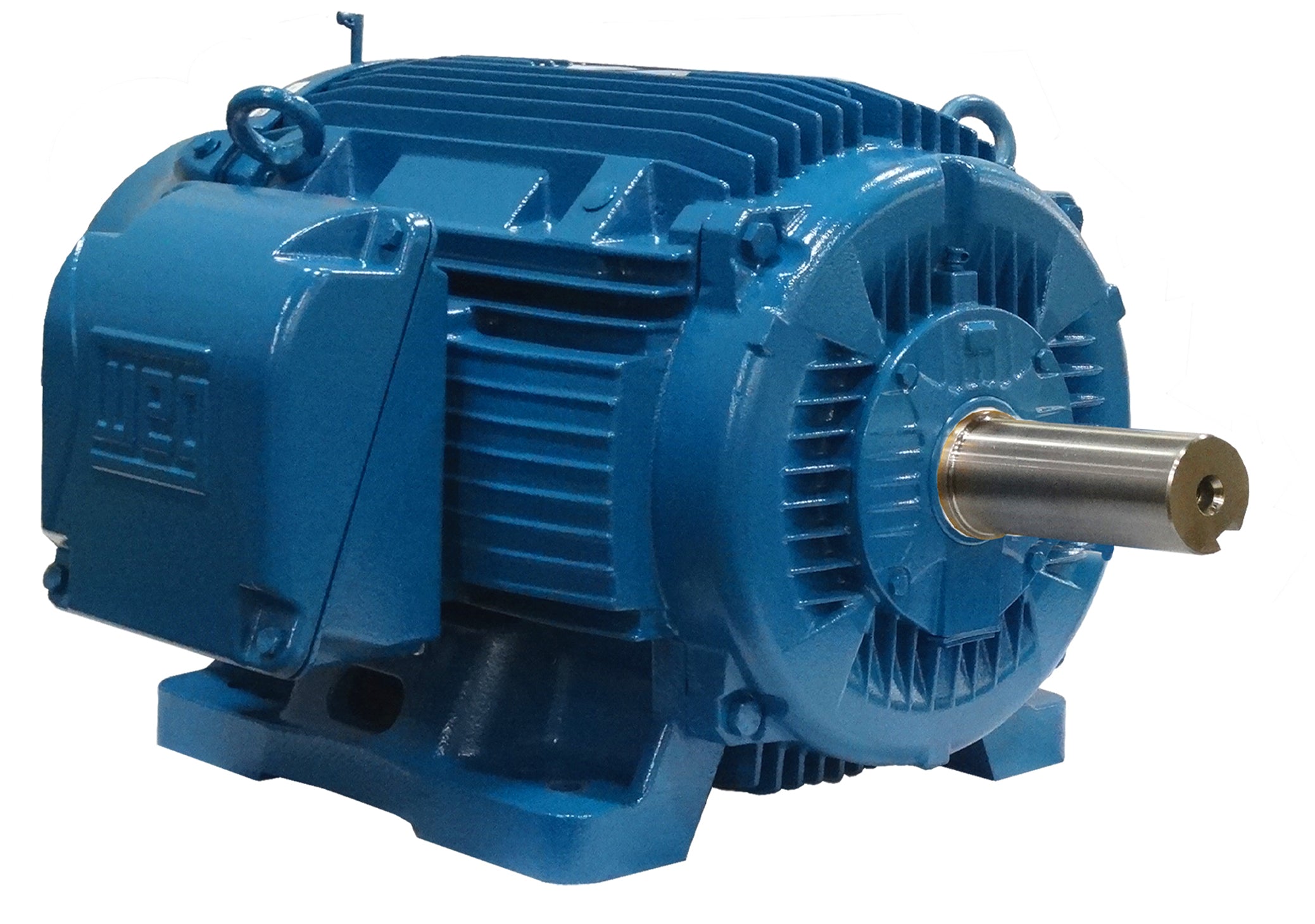

The WEG 00118ET3H143T-W22 is a 1 HP, three phase TEFC electric motor in a 143/5T frame, rated at 1800 RPM on 575.0 volts. Genuine WEG, brand new with full manufacturer warranty.
Specifications
| Catalog Number | 00118ET3H143T-W22 |
| Horsepower (HP) | 1 |
| RPM | 1800 |
| Frame | 143/5T |
| Phase | Three Phase |
| Enclosure | TEFC |
| Voltage | 575.0 |
| Service Factor | 1.25 |
| Full Load Amps | 1.18 |
| Efficiency (%) | 85.5 |
| Mounting | TEFC - Foot Mount |
| Product Line | Three Phase General Purpose Motors |
| Shipping Weight (lbs) | 48.0 |
