1HP WEG 1800RPM 143/5TC TEFC 3PH MOTOR 00118ET3E143TC-W22
$493.96
Sale price
$493.96
Regular price
$555.00

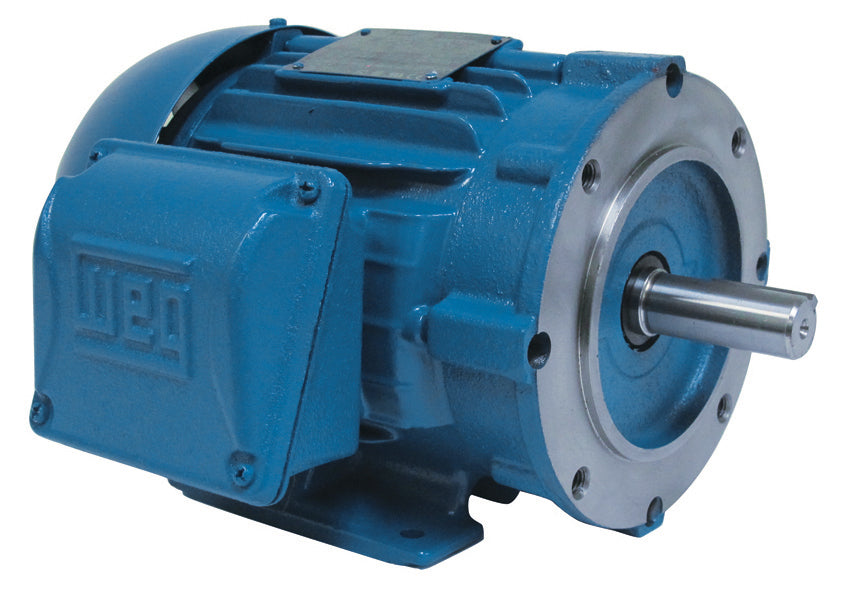

The WEG 00118ET3E143TC-W22 is a 1 HP, three phase TEFC electric motor in a 143/5TC frame, rated at 1800 RPM on 230/460 volts. Genuine WEG, brand new with full manufacturer warranty.
Specifications
| Catalog Number | 00118ET3E143TC-W22 |
| Horsepower (HP) | 1 |
| RPM | 1800 |
| Frame | 143/5TC |
| Phase | Three Phase |
| Enclosure | TEFC |
| Voltage | 230/460 |
| Service Factor | 1.25 |
| Full Load Amps | 1.47 |
| Efficiency (%) | 85.5 |
| Mounting | TEFC - C-Face - Foot Mount |
| Product Line | General Purpose Motors |
| Shipping Weight (lbs) | 50.0 |
